High-performance FRP Solution

BWFRP fiberglass reinforced plastic cable conduit

The BWFRP fiberglass reinforced plastic cable conduit is made of a thermosetting resin as the matrix and glass fiber unwound yarn and its products as the reinforcing materials. It is fabricated through processes such as weaving, winding, and pultrusion.
The BWFRP fiberglass reinforced plastic cable conduit features high tensile strength, good flexibility, and strong impact resistance. The weaving angle is generally greater than 90°. It adopts an inner and outer layer weaving process, ensuring excellent tensile strength and the ability to resist damage caused by external heavy pressure and foundation settlement. It is flame-retardant, resistant to high temperatures, and has excellent frost resistance. The pipe wall is smooth, with strong airtightness. At the same time, it has strong electrical insulation. It is resistant to corrosion, water resistance, and is safe and environmentally friendly. The raw materials are non-alkali glass fibers, which are harmless to the human body and do not cause pollution to soil or water. It has a light weight and is convenient for construction.

Request a Quote View Specifications

Engineering Details

Product Structure

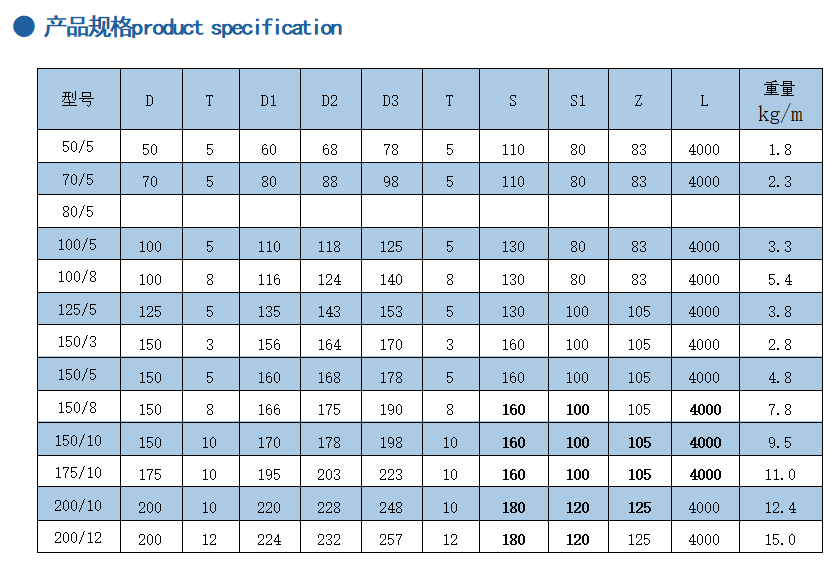

BWFRP fiberglass reinforced plastic cable conduit ps

Detailed Overview

Product Introduction & Advantages

Product IntroductionBWFRP is made of a thermosetting resin as the matrix, glass fiber un-twisted coarse yarn and its products as the reinforcing materials, and is produced through processes such as weaving, winding and extrusion. BWFRP consists of an inner weaving layer, an intermediate layer, and an outer weaving layer. The inner and outer weaving layers with different weaving angles, combined with the longitudinally and circumferentially composite intermediate layer, form an ideal composite material product, and is mainly applied in power cable protective sleeves.● Product AdvantagesExcellent corrosion resistance. Through specialized design, it can withstand the erosion of various chemical fluids such as acids, alkalis, salts, untreated sewage, corrosive soil and groundwater, and can be used in high-temperature saline areas.Long service life. Special design ensures a service life of over 50 years. Strong environmental adaptability. Flame retardant, heat-resistant and frost-resistant, it can be used for a long time at -50℃ - 130℃ without deformation.Good electrical insulation performance. It is a non-magnetic material with a large current-carrying capacity and small thermal resistance, and has no adverse effect on the normal operation of the cable.Flexible. The flexible system has good adaptability. The pipe material is flexible, and combined with flexible joints, it can resist damage caused by external heavy pressure and foundation settlement.● Application FieldsFRP braided and wrapped pipes are suitable for protecting power and communication cables during their laying in various environments. Especially in special situations such as cables passing through traffic intersections or crossing rivers and bridges, they can fully demonstrate their superior performance such as simple construction and high strength. They are widely used in infrastructure construction fields such as power, communication, municipal, transportation, airports, etc. When used in conjunction with various specialized accessories, they can be combined to form multi-layer and multi-column cable pipeline systems according to different engineering requirements.
